Features

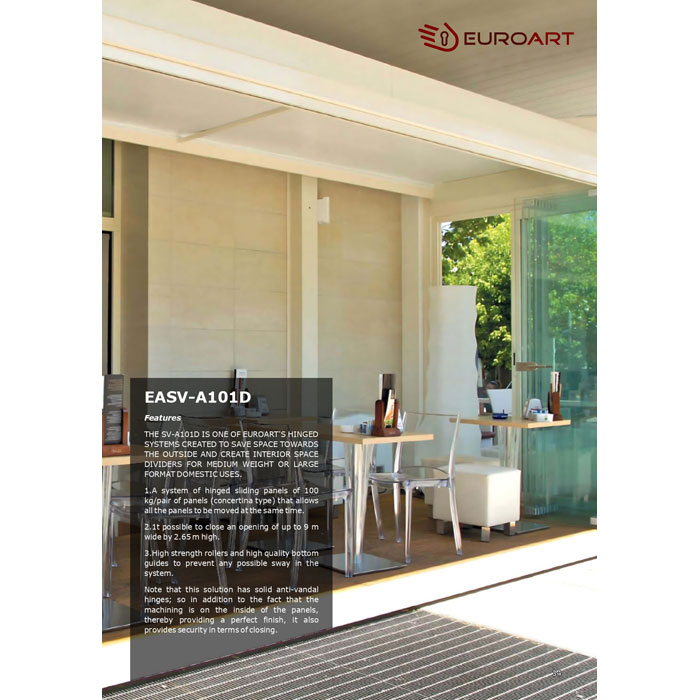

THE SV-A101D IS ONE OF EUROART’S HINGED SYSTEMS CREATED TO SAVE SPACE TOWARDS THE OUTSIDE AND CREATE INTERIOR SPACE DIVIDERS FOR MEDIUM WEIGHT OR LARGE FORMAT DOMESTIC USES.
- .A system of hinged sliding panels of 100 kg/pair of panels (concertina type) that allows all the panels to be moved at the same time.
- .1t possible to close an opening of up to 9 m wide by 2.65 m high.
- High strength rollers and high quality bottom guides to prevent any possible sway in the system.
Note that this solution has solid anti-vandal hinges; so in addition to the fact that the machining is on the inside of the panels, thereby providing a perfect finish, it also provides security in terms of closing.
Product Specification
| Product characteristics | EASV-A101D |
|---|---|
| For interior assembly | Yes |
| Maximum door weight | 100kg for pair of panel . |
| Maximum door width | 750mm |
| Maximum door Height | 2650mm |
| Self closing | Cushioning effect |
| For Standard toughened glass assembly | Yes |
| Glass thickness | 8-10 |
| Rail height | 53 mm |
| Installation at wall | No |
| Ceiling mounting | Yes |
| Adjustable | Yes |
